12mm Cement Particle board

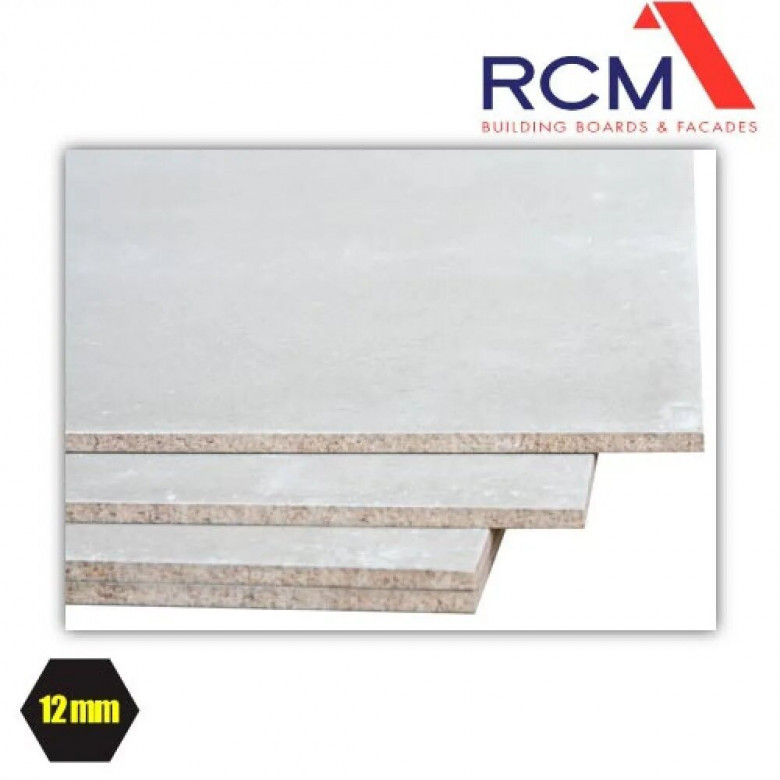

12mm RCM Cemboard Cement Bonded Particle Building Board
12mm Cement Particle Board Particle Building Board is a stiff, medium density high-performance cement bonded particle building board with a great toughness and stability, but with the ability to work like wood. 12mm Cement particle board It is a Bonded particle Building Board can be used primarily as an external sheathing board. It offers excellent acoustic properties making it an ideal acousticbuilding Board . Used extensively in both timber and metal frame structures, it is also an ideal choice for offsite and modular builds. Cemboard can be used behind every kind of facade and also in various interior acoustic floorand roofingconstructions.
12mm Cement Particle board
Thickness (mm): 12mm
All Thickness (mm): 10,12mm
Board Sizes: 2400 x 1200mm - 2.88m2
Weight/m2: 15kg
Nominal Density: 1250 kg/m3
Bending Strength (Modulus of Rupture): 9 N/mm2
Modulus of Elasticity (MoE): 4500 N/mm2
Internal Bonding:EN 310 and EN 13986:2004 - 0.5 N/mm2
Thermal Conductivity: 0.20 W/mk
Moisture Content: 9% +-3%
Response to fire:BS EN 13501-1 rated B-s1, d0
Biological Resistance: Highly Resistant
Surface Condition:
Front Face -Smooth
Back Face -Smooth
Durability (Life Expectancy : Minimum): 30 years
Fire Reaction Exams BS EN 13501-1:2007 Rated to B-s1, d0
Applications that are essential
Sheathing board
- Acoustic flooring Acoustic flooring
-High impact partitioning
-Acousticroofing
-Shuttering
-OEM applications
Suitable for the following construction types
-Lightweight Steel Frame
-Timber Frame
-Modular / Offsite
Features
Awarded to fire-rated at EN 13501-1 classes B-s1, d0
High Impact Resistance
Good water resistance
Improved fire performance when compared to timber
Strong and stable
Increased strength and density in OEM applications
Excellent acoustic properties
Integrates in conjunction with the other RCM products
Workability
12mm RCM Cemboard Cement Bonded Particle Building Board can be broken, cut and nailed using conventional hand tools. It has some of the same properties as timber. To cut the product in any amount, we recommend the use of it with an RCM polycrystalline diamond Dart Blade to avoid excessive wear on other blades. Alternatively, RCM/InsulationBee offers an entire fabrication service Contact our technical department for further details.
